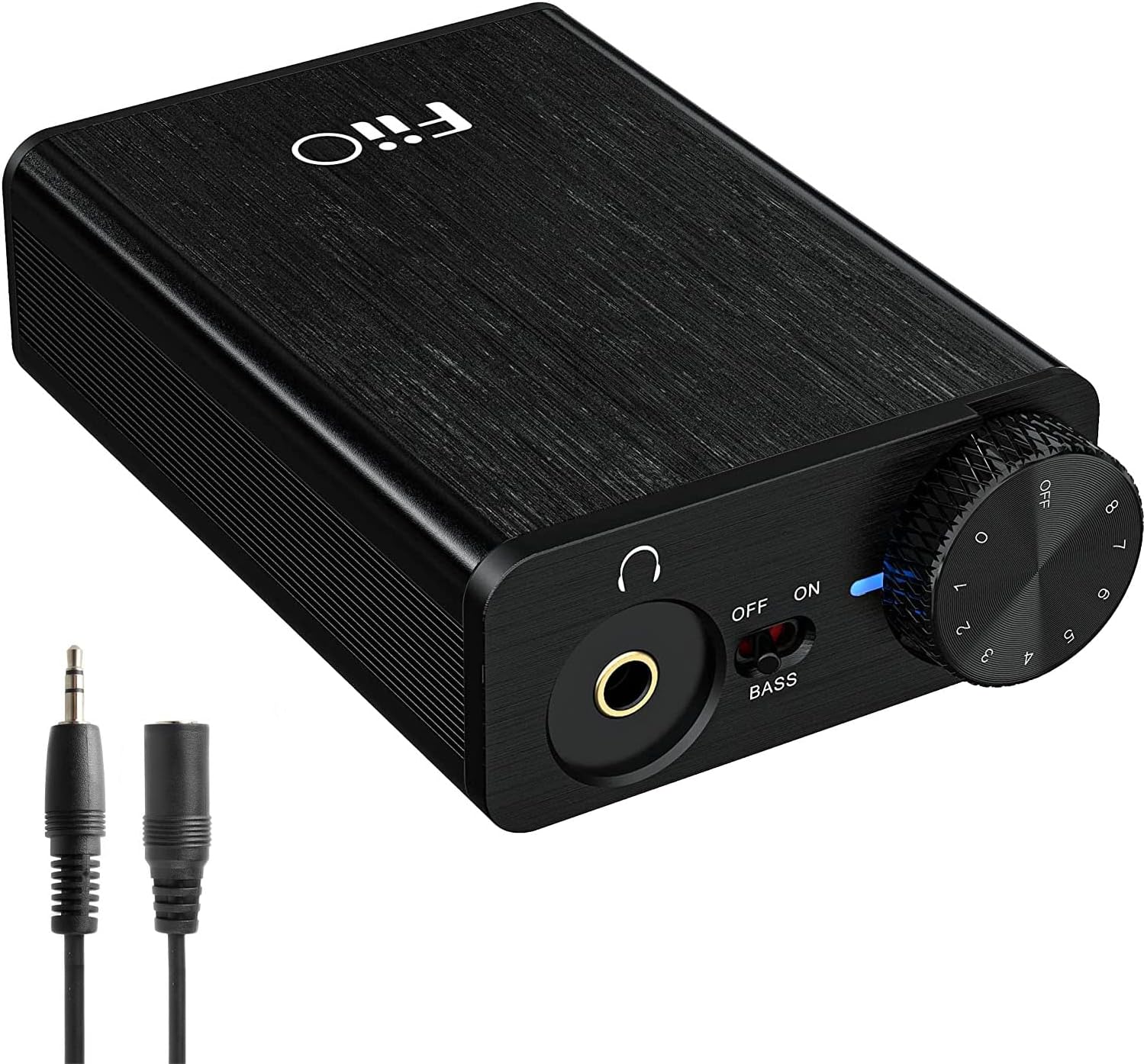

Black USB Headphone Amplifier DAC with 3.5mm Audio Cable 6 Ft I942942
Black USB Headphone Amplifier DAC with 3.5mm Audio Cable 6 Ft I942942
DAC CHIP: The internal DAC chip is a PCM5102 and can handle PCM files up to 32-bit/384 kHz while improving audio quality via a linear internal filter; this also reduces delay, improves internal silence on changing tracks, and induces no phase shifts.
LOW NOISE FLOOR: Down let the dual gain settings fool you: The unit has an optimized low-pass filter and selectable bass boost circuit that are designed for a low noise floor in all states.
AMPLIFICATION STAGE: The E10K-TC features a LMH6643 op amp, which is designed for transient response and driving power.

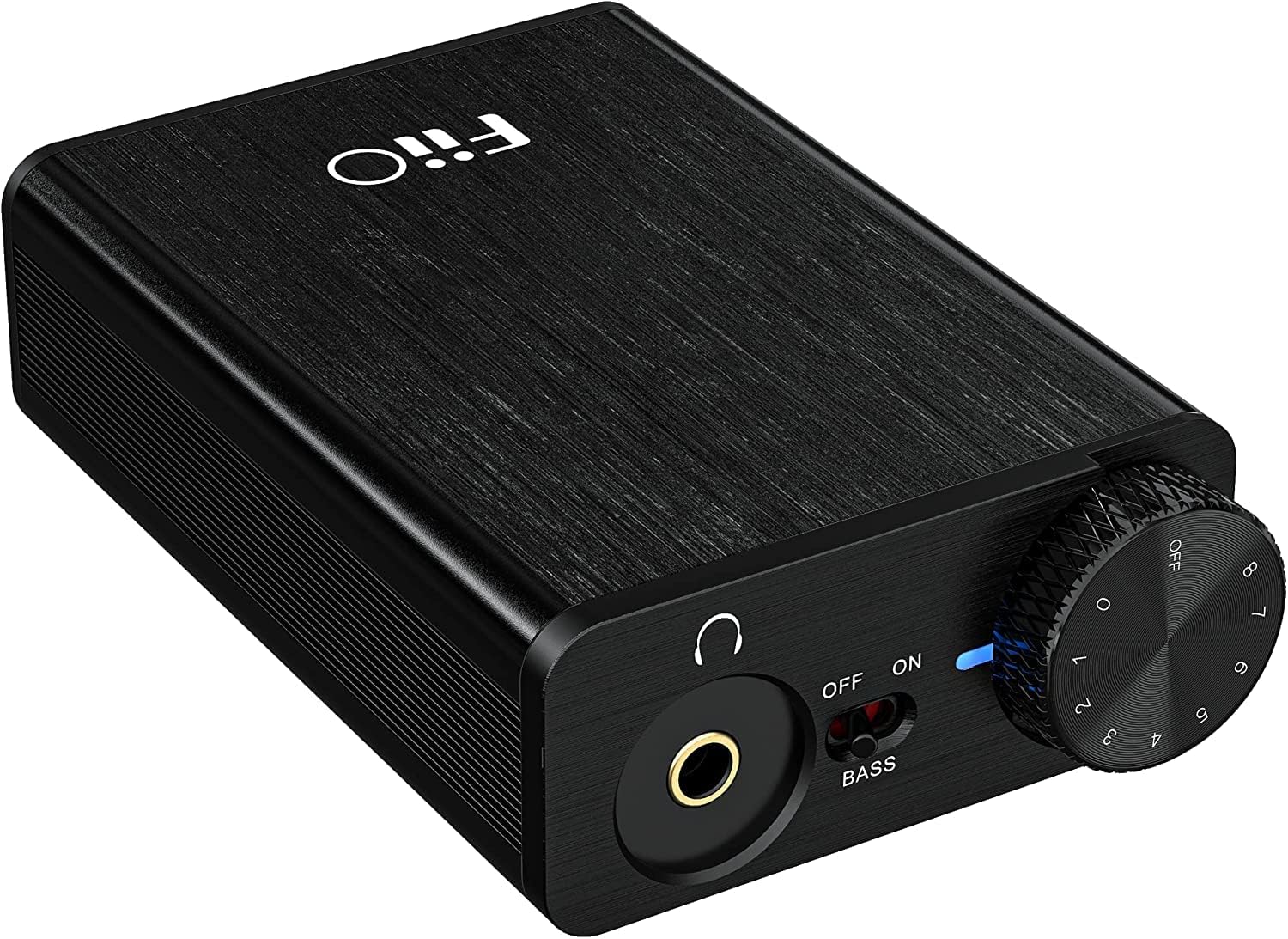

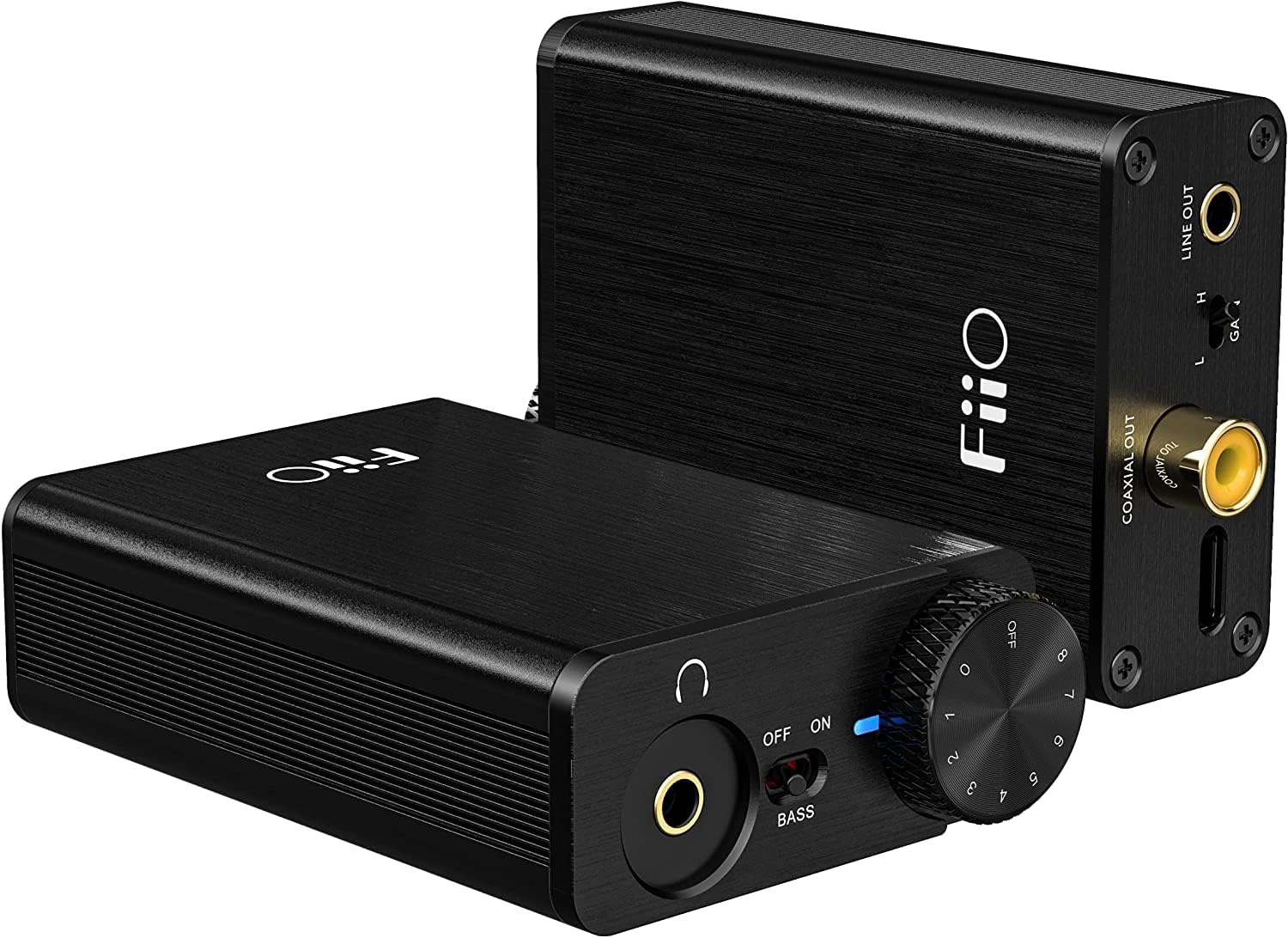

PORTABLE DESIGN: A brushed aluminum shell and chassis allow for durable portable use.
USB Type-C for the Modern World: To better interface with modern devices, the unit offers a USB Type-C connection
The USB Type-C DAC and Headphone Amplifier from FiiO is designed to improve your laptop's audio output quality via its PCM5102 DAC chip. It's capable of handling PCM files in up to 32-bit, 384 kHz resolution over USB, or outputting 192 kHz over coaxial S/PDIF. With dual gain settings, the unit features a selectable bass boost and a low-pass filter, both with circuitry optimized for a low noise floor when engaged, allowing you to customize the sound of your audio to your tastes.

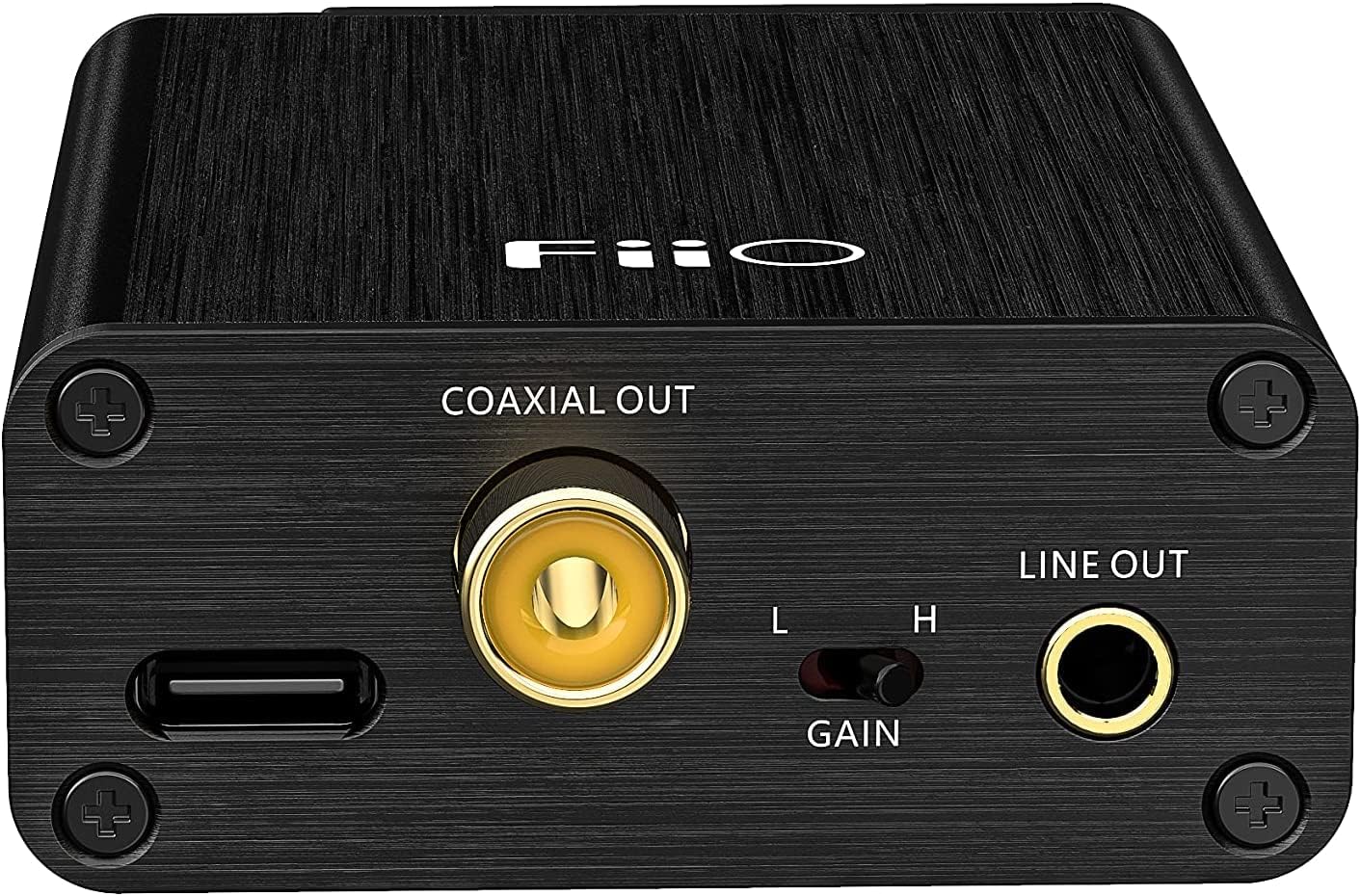

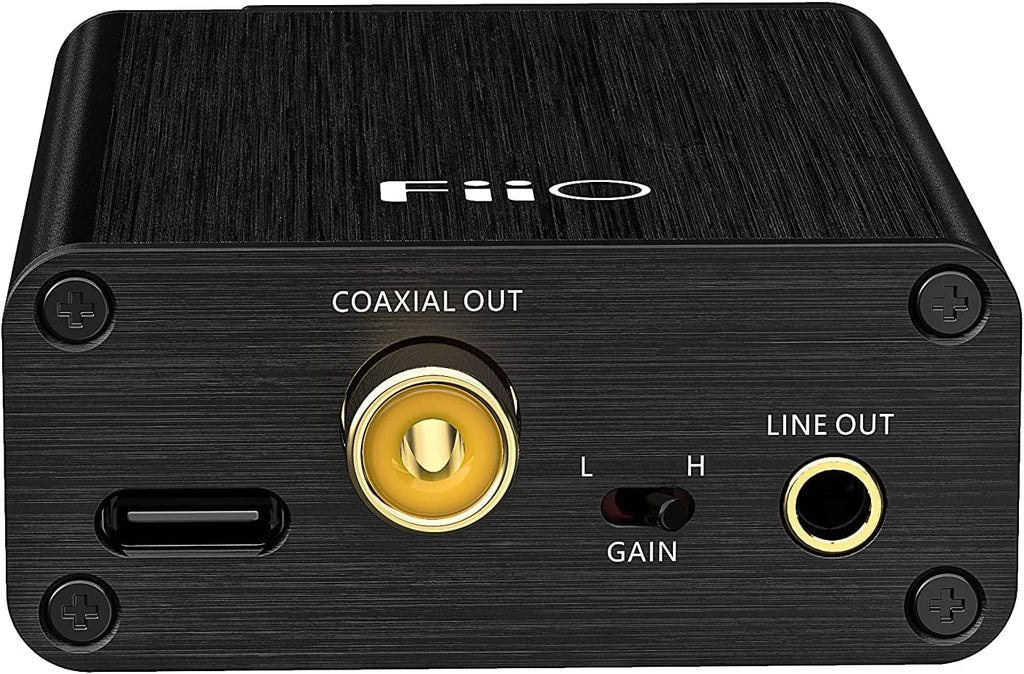

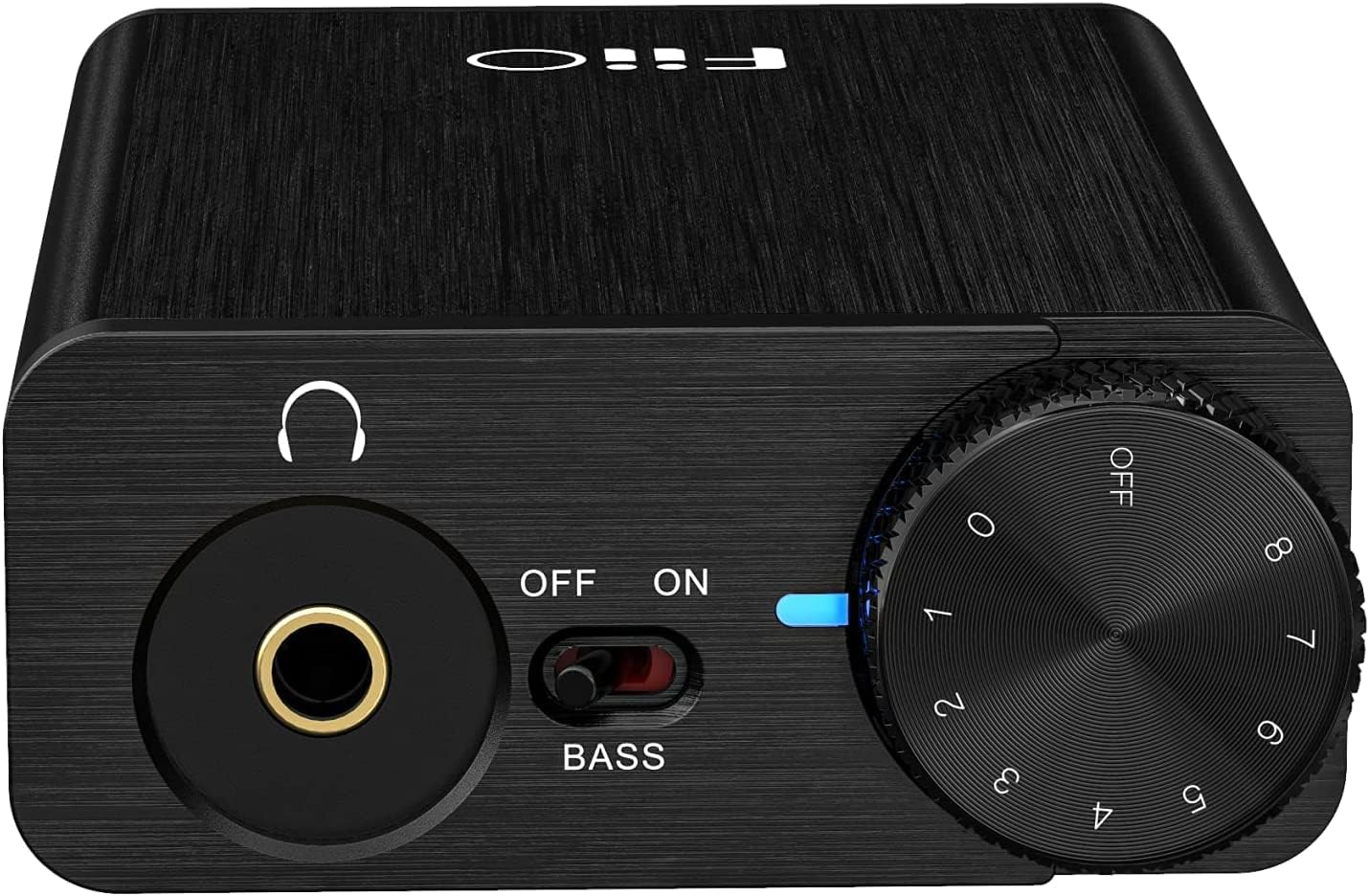

The unit connects to your laptop via its USB Type-C connection, which also provides it with power. It offers a variety of connections, including a front-panel 3.5mm headphone jack, a rear-panel 3.5mm line output, and a rear-panel coaxial digital output, which allows you to send your digital audio to another destination.
Specifications:
- Power (Supply): Updated Type-C USB Port
- Output Power: 200mW (32Ω THD<1%)
- Sample rate (USB decoding): Maximum of 24 bit / 96kHz supported
- S/N ratio: ≥ 105dB
- Coaxial digital output: Stereo PCM
- Frequency response: 20Hz-20kHz
- Headphone impedence:16-150Ω
- Dimensions:49.1mmx80mmx21mm
- Weight: 78g
Item Includes:
- FiiO USB Type-C DAC and Headphone Amplifier
- Limited 1-Year Warranty
- C2G 13787 3.5mm M/F Shielded Stereo Audio Extension Cable, Black (6 Feet, 1.82 Meters)
